PCM INSPECTION [ZJ, Z6]


B3E014018880W08

Not Using the WDS or Equivalent

Note
• The PCM terminal voltage can vary with conditions when measuring and changes due to age deterioration on the vehicle, causing false diagnosis. Therefore a comprehensive inspection of the input and output systems, and the PCM is necessary to determine where the malfunction occurs.

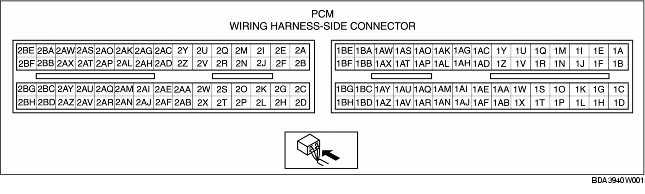

PCM terminal voltage table (Reference)

Terminal voltage table (Reference)

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item(s)
1A
-
-
-
-
-
1B
-
-
-
-
-
1C
-
-
-
-
-
1D
-
-
-
-
-
1E
-
-
-
-
-
1F
-
-
-
-
-
1G*1
Internal GND
Input/turbine speed sensor shield wire
Under any condition
1.0 or less
• Related wiring harness
1H
-
-
-
-
-
1I
-
-
-
-
-
1J
-
-
-
-
-
1K*1
Input/turbine speed sensor (-)
Input/turbine speed sensor
• Input/turbine speed sensor
• Related wiring harness
1L
-
-
-
-
-
1M
-
-
-
-
-
1N
-
-
-
-
-
1O*1
Input/turbine speed sensor (+)
Input/turbine speed sensor
• Input/turbine speed sensor
• Related wiring harness
1P

*3CPP switch

CPP switch
Ignition switch is turned to the ON position.
Clutch pedal depressed
1.0 or less
• CPP switch
• Related wiring harness
Clutch pedal released
B+

*1Manual up

Up switch
Ignition switch is turned to the ON position.
Detects up-shift operation of selector lever in M range
1.0 or less
• Selector lever
• Related wiring harness
Others
B+
1Q
Refrigerant pressure (low, high)
Refrigerant pressure switch (low pressure switch, high pressure switch)
Refrigerant pressure is more than the specification or less than the specification. (Refrigerant pressure switch (low pressure switch, high pressure switch) is off.)
B+
• Refrigerant pressure switch (low pressure switch, high pressure switch)
• Related wiring harness
Others
1.0 or less
1R
-
-
-
-
-
1S
CAN_L
Instrument cluster, ABS HU/CM, DSC HU/CM, DLC-2
Because this terminal is for CAN, good/no good judgment by terminal voltage is not possible.
-
1T
-
-
-
-
-
1U
Refrigerant pressure (middle)
Refrigerant pressure switch (middle)
Idle
Refrigerant pressure is 1.52 MPa {15.5 kgf/cm2, 221 psi} or more
1.0 or less
• Refrigerant pressure switch (middle)
• Related wiring harness
Refrigerant pressure is 12.3 MPa {125 kgf/cm2, 1783 psi} or less
B+
1V
Brake switch
Brake switch
Brake pedal depressed
B+
• Brake switch
• Related wiring harness
Brake pedal released
1.0 or less
1W
CAN_H
Instrument cluster, ABS HU/CM, DSC HU/CM, DLC-2
Because this terminal is for CAN, good/no good judgment by terminal voltage is not possible.
-
1X*1
Selector lever position
TR switch
Ignition switch is turned to the ON position.
P position
Approx. 4.6
• TR switch
• Related wiring harness
R position
Approx. 3.9
N position
Approx. 3.2
D range
Approx. 2.5
M range
Approx. 2.5
1Y
-
-
-
-
-
1Z
-
-
-
-
-
1AA
-
-
-
-
-
1AB

*3Neutral switch

Neutral switch
Ignition switch is turned to the ON position.
Neutral
1.0 or less
• Neutral switch
• Related wiring harness
Except above
B+

*1Manual down

Down switch
Ignition switch is turned to the ON position.
Detects down-shift operation of selector lever in M range
1.0 or less
• Selector lever
• Related wiring harness
Others
B+
1AC
Fuel pump control
Fuel pump relay
Immediately after ignition switch is turned to the ON position.
1.0 or less
• Fuel pump relay
• Related wiring harness
Ignition switch is turned to the ON position.
B+
Cranking
1.0 or less
Idle
1AD
-
-
-
-
-
1AE
-
-
-
-
-
1AF*1
Pressure control solenoid (+)
Pressure control solenoid
• Pressure control solenoid
• Related wiring harness
1AG
-
-
-
-
-
1AH
-
-
-
-
-
1AI
-
-
-
-
-
1AJ*1
Shift solenoid D
Shift solenoid D
P or N position
B+
• Shift solenoid D
• Related wiring harness
Except above
1.0 or less
1AK
Starter relay control
Starter relay
Cranking
1.0 or less
• Starter relay
• Related wiring harness
1AL
The A/C cut-off control.
A/C relay
The A/C is operating.
1.0 or less
• A/C relay
• Related wiring harness
The A/C is not operating.
B+
1AM
-
-
-
-
-
1AN*1
Internal GND
TFT sensor, TR switch
Under any condition
1.0 or less
• Related wiring harness
1AO
-
-
-
-
-
1AP
Fan control
Fan control module
Test mode is on.*2
CTP
B+
• Fan control module
• Related wiring harness
WOT
1.0 or less
1AQ*1
M range switch
M range switch
Ignition switch is turned to the ON position.
M range
1.0 or less
• Selector lever
• Related wiring harness
Except above
B+
1AR*1
Shift solenoid E
Shift solenoid E
During TCC operation
B+
• Shift solenoid E
• Related wiring harness
Except above
1.0 or less
1AS
-
-
-
-
-
1AT
-
-
-
-
-
1AU*1
ATF temperature
TFT sensor
Ignition switch is turned to the ON position.
TFT is 20 °C {68 °F}
Approx. 3.3
• TFT sensor
• Related wiring harness
TFT is 40 °C {104 °F}
Approx. 2.4
TFT is 60 °C {140 °F}
Approx. 1.5
1AV*1
Pressure control solenoid (-)
Pressure control solenoid
• Pressure control solenoid
• Related wiring harness
1AW
Main relay
Main relay
Ignition switch is off.
B+
• Main relay
• Related wiring harness
Ignition switch is turned to the ON position.
1.0 or less
1AX
Back-up power supply
Battery
Under any condition
B+
• Battery
• Related wiring harness
1AY*1
Vehicle speed
VSS
• VSS
• Related wiring harness
1AZ*1
Shift solenoid A
Shift solenoid A
• Shift solenoid A
• Related wiring harness
1BA
-
-
-
-
-
1BB
Battery voltage
Main relay
Ignition switch is off.
1.0 or less
• Main relay
• Battery
• Related wiring harness
Ignition switch is turned to the ON position.
B+
1BC*1
VSS power supply
VSS
Ignition switch is turned to the ON position.
B+
• Related wiring harness
1BD*1
Shift solenoid C
Shift solenoid C
• Shift solenoid C
• Related wiring harness
1BE
Ignition switch
Ignition switch
Ignition switch is off.
1.0 or less
• Ignition switch
• Related wiring harness
Ignition switch is turned to the ON position.
B+
1BF
Battery voltage
Main relay
Ignition switch is off
1.0 or less
• Main relay
• Battery
• Related wiring harness
Ignition switch is turned to the ON position.
B+
1BG*1
Battery voltage
Main relay
Ignition switch is off.
1.0 or less
• Main relay
• Battery
• Related wiring harness
Ignition switch is turned to the ON position.
B+
1BH*1
Shift solenoid B
Shift solenoid B
• Shift solenoid B
• Related wiring harness
2A
Ignition coil power supply
Ignition coil
Ignition switch is turned to the ON position.
B+
• Related wiring harness
2B
Fuel injection control
Fuel injector No.1
• Fuel injector No.1
• Related wiring harness
2C
Fuel injection control
Fuel injector No.2
• Fuel injector No.2
• Related wiring harness
2D
Fuel injection control
Fuel injector No.3
• Fuel injector No.3
• Related wiring harness
2E
Fuel injector No.1 power supply
Fuel injector No.1
Ignition switch is turned to the ON position.
B+
• Related wiring harness
2F
Fuel injector No.2 power supply
Fuel injector No.2
Ignition switch is turned to the ON position.
B+
• Related wiring harness
2G
Fuel injector No.3 power supply
Fuel injector No.3
Ignition switch is turned to the ON position.
B+
• Related wiring harness
2H
Fuel injection control
Fuel injector No.4
• Fuel injector No.4
• Related wiring harness
2I
-
-
-
-
-
2J
ECT
ECT sensor
Ignition switch is turned to the ON position.
ECT is 20 °C {68 °F}
Approx. 3.0
• ECT sensor
• Related wiring harness
ECT is 60 °C {140 °F}
Approx. 1.4
ECT is 80 °C {176 °F}
Approx. 0.9
2K
Rear HO2S
Rear HO2S
Idle
Alternates between 0 and 1.0
• Rear HO2S
• Related wiring harness
2L
Fuel injector No.4 power supply
Fuel injector No.4
Ignition switch is turned to the ON position.
B+
• Related wiring harness
2M
ESA control
Ignition coil No.4
• Ignition coil No.4
• Related wiring harness
2N
EGR control
EGR valve
Idle (EGR control operating)
1.0 or less
• EGR valve
• Related wiring harness
2O
-
-
-
-
-
2P
CKP
CKP sensor
• CKP sensor
• Related wiring harness
2Q
ESA control
Ignition coil No.3
• Ignition coil No.3
• Related wiring harness
2R
EGR control
EGR valve
Idle (EGR control operating)
B+
• EGR valve
• Related wiring harness
2S
BARO sensor
BARO sensor
Ignition switch is turned to the ON position.
Altitude:0 m {0 ft})
2.3-2.8*4
• BARO sensor
• Related wiring harnesses
Altitude:500 m {1,640 ft}
2.2-2.8*4
Altitude:1,000 m {3,281 ft}
2.1-2.8*4
Altitude:1,500 m {4921 ft}
2.0-2.8*4
Altitude: 2,000 m {6,562 ft}
1.9-2.7*4
Altitude: 2,500 m {8,202 ft}
1.8-2.6*4
2T
Input/output device power supply
CKP sensor, CMP sensor, front HO2S, rear HO2S, purge solenoid valve
Ignition switch is turned to the ON position.
B+
• Related wiring harness
2U
ESA control
Ignition coil No.2
• Ignition coil No.2
• Related wiring harness
2V
EGR control
EGR valve
Idle (EGR control operating)
B+
• EGR valve
• Related wiring harness
2W
Constant voltage (vref)
TP sensor, BARO sensor
Ignition switch is turned to the ON position.
Approx. 5.0
• TP sensor
• BARO sensor
• Related wiring harness
2X
IAC (+)
IAC valve
• IAC valve
• Related wiring harness
2Y
ESA control
Ignition coil No.1
• Ignition coil No.1
• Related wiring harness
2Z
EGR control
EGR valve
Idle (EGR control operating)
1.0 or less
• EGR valve
• Related wiring harness
2AA
TP
TP sensor
Ignition switch is turned to the ON position.
CTP
0.3-1.0
• TP sensor
• Related wiring harness
WOT
3.1-4.5
2AB
IAC (-)
IAC valve
• IAC valve
• Related wiring harness
2AC
PSP switch
PSP switch
Idle
Steering wheel at straight ahead position
B+
• PSP switch
• Related wiring harness
While turning steering wheel
1.0 or less
2AD
-
-
-
-
-
2AE
Internal GND
TP sensor
Under any condition
1.0 or less
• Related wiring harness
2AF
Variable tumble control (open)
Variable tumble shutter valve actuator
The engine is hot.
When the ignition switch turned to the ON position.
B+*5
• Variable tumble shutter valve actuator
• Related wiring harness
Idle after cold start
When the ECT reaches 60 °C {140 °F}
Except above
1.0 or less
2AG
Variable valve timing control (-)
OCV
Under any condition
1.0 or less
• OCV
• Related wiring harness
2AH
-
-
-
-
-
2AI
Front HO2S
Front HO2S
• Front HO2S
• Related wiring harness
2AJ
Variable tumble control (close)
Variable tumble shutter valve actuator
The engine is cold.
When the ignition switch turned to the ON position.
B+*5
• Variable tumble shutter valve actuator
• Related wiring harness
Except above
1.0 or less
2AK
Variable valve timing control (+)
OCV
• OCV
• Related wiring harness
2AL
-
-
-
-
-
2AM
Front HO2S heater control
Front HO2S heater
• Front HO2S
• Related wiring harness
2AN
Generator control
Generator (terminal D)
• Generator
• Related wiring harness
2AO*6
Variable intake-air control (open)
Variable intake-air shutter valve actuator
When the ignition switch turned to the ON position.
1.0 or less
• Variable intake-air shutter valve actuator
• Related wiring harness
When the engine speed is increased gradually and reaches 4,100 rpm.
B+*5
Except above
1.0 or less
2AP
-
-
-
-
-
2AQ
IAT
IAT sensor
Ignition switch is turned to the ON position.
IAT is 20 °C {68 °F}
Approx. 2.2
• IAT sensor
• Related wiring harness
IAT is 30 °C {86 °F}
Approx. 1.8
2AR
Generator output voltage
Generator (terminal P)
• Generator
• Related wiring harness
2AS*6
Variable intake-air control (close)
Variable intake-air shutter valve actuator
When the ignition switch is turned to the ON position.
B+*5
• Variable intake-air shutter valve actuator
• Related wiring harness
When the engine speed is decreased gradually and reaches 4,100 rpm.
Except above
1.0 or less
2AT
Rear HO2S
Rear HO2S
After fixed period of time from engine start
1.0 or less
• Rear HO2S
• Related wiring harness
Engine speed is 2,700 or more.
B+
2AU
MAF
MAF sensor
Ignition switch is turned to the ON position.
Approx. 0.7
• MAF sensor
• Related wiring harness
Idle
Approx. 1.3
2AV
Purge control
Purge solenoid valve
• Purge solenoid valve
• Related wiring harness
2AW
-
-
-
-
-
2AX
Internal GND
ECT sensor, front HO2S, rear HO2S, BARO sensor
Under any condition
1.0 or less
• Related wiring harness
2AY
Internal GND
IAT sensor
Under any condition
1.0 or less
• Related wiring harness
2AZ
GND
GND
Under any condition
1.0 or less
• Related wiring harness
2BA
Knocking
Knock sensor
Ignition switch is turned to the ON position. (Use digital type voltmeter, because measurement voltage will be detected less than true voltage when using analog type voltmeter)
Approx. 2.4
• Knock sensor
• Related wiring harness
2BB
CMP
CMP sensor
• CMP sensor
• Related wiring harness
2BC
Internal GND
MAF sensor
Under any condition
1.0 or less
• Related wiring harness
2BD
GND
GND
Under any condition
1.0 or less
• Related wiring harness
2BE
Internal GND
HO2S shield wire
Under any condition
1.0 or less
• Related wiring harness
2BF
Internal GND
CKP sensor, CMP sensor
Under any condition
1.0 or less
• Related wiring harness
2BG
Power supply
MAF sensor, EGR valve
Under any condition
B+
• Related wiring harness
2BH
GND
GND
Under any condition
1.0 or less
• Related wiring harness

*1 :
ATX
*2 :
Turn the test mode on using the WDS simulation test.
*3 :
MTX
*4 :
The voltage may vary excessively depending on the weather or battery conditions.
*5 :
The voltage changes for a specified time.
*6 :
Z6

Inspection Using An Oscilloscope (Reference)

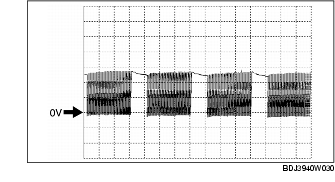

Input/turbine speed sensor (-) signal

PCM terminals
• 1K (+)-Negative battery terminal (-)
Oscilloscope setting
• 500 mV/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
• Idle after warm-up

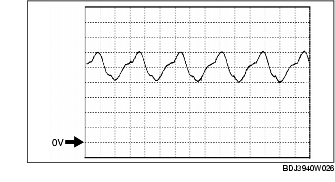

Input/turbine speed sensor (+) signal

PCM terminals
• 1O (+)-Negative battery terminal (-)
Oscilloscope setting
• 500 mV/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
• Idle after warm-up

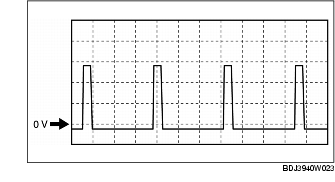

Pressure control solenoid (+) signal

PCM terminals
• 1AF (+)-Negative battery terminal (-)
Oscilloscope setting
• 5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
• All of the following conditions are met.
- Ignition switch is turned to the ON position. (engine off)
- P or N position
- CTP

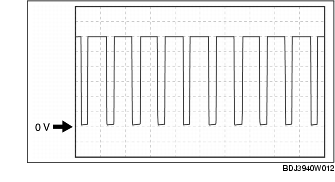

Pressure control solenoid (-) signal

PCM terminals
• 1AV (+)-Negative battery terminal (-)
Oscilloscope setting
• 200 mV/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
• All of the following conditions are met.
- Ignition switch is turned to the ON position. (engine off)
- P or N position
- CTP

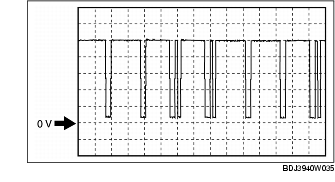

Vehicle speed signal (ATX)

PCM terminals
• 1AY (+)-Negative battery terminal (-)
Oscilloscope setting
• 1 V/DIV (Y), 2.5 ms/DIV (X), DC range
Vehicle condition
• Vehicle speed is 32 km/h {20 mph}.

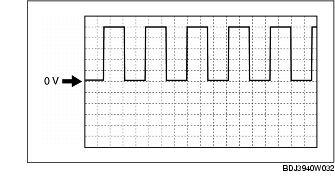

Shift solenoid A signal

PCM terminals
• 1AZ (+)-Negative battery terminal (-)
Oscilloscope setting
• 5 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
• 4GR

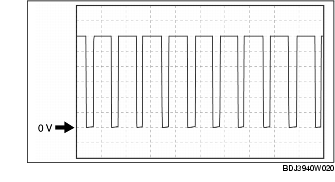

Shift solenoid C signal

PCM terminals
• 1BD (+)-Negative battery terminal (-)
Oscilloscope setting
• 5 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
• 1GR or 2GR

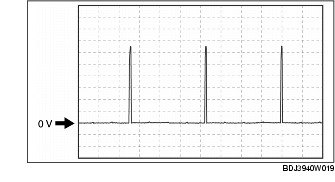

Shift solenoid B signal

PCM terminals
• 1BH (+)-Negative battery terminal (-)
Oscilloscope setting
• 5 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
• 1GR (except L range (HOLD))

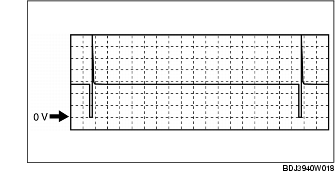

Fuel injection control signal

PCM terminals
• No.1: 2B (+)-Negative battery terminal (-)
• No.2: 2C (+)-Negative battery terminal (-)
• No.3: 2D (+)-Negative battery terminal (-)
• No.4: 2H (+)-Negative battery terminal (-)
Oscilloscope setting
• 5 V/DIV (Y), 10 ms/DIV (X), DC range
Vehicle condition
• Idle after warm-up

ESA control signal

PCM terminals
• No.1: 2Y (+)-Negative battery terminal (-)
• No.2: 2U (+)-Negative battery terminal (-)
• No.3: 2Q (+)-Negative battery terminal (-)
• No.4: 2M (+)-Negative battery terminal (-)
Oscilloscope setting
• 0.5 V/DIV (Y), 40 ms/DIV (X), DC range
Vehicle condition
• Idle after warm-up

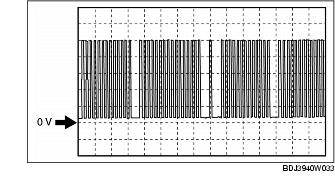

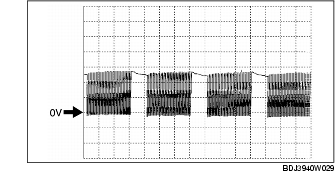

CKP signal

PCM terminals
• 2P (+)-Negative battery terminal (-)
Oscilloscope setting
• 1 V/DIV (Y), 10 ms/DIV (X), DC range
Vehicle condition
• Idle after warm-up

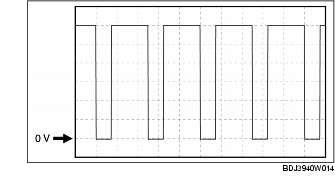

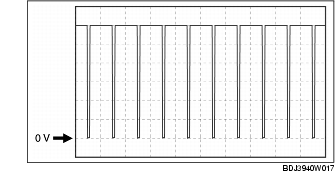

IAC (+) signal

PCM terminals
• 2X (+)-Negative battery terminal (-)
Oscilloscope setting
• 2 V/DIV (Y), 2 ms/DIV (X), DC range
Vehicle condition
• Idle after warm-up

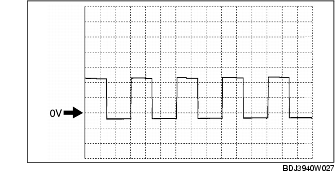

IAC (-) signal

PCM terminals
• 2AB (+)-Negative battery terminal (-)
Oscilloscope setting
• 2 V/DIV (Y), 2 ms/DIV (X), DC range
Vehicle condition
• Idle after warm-up

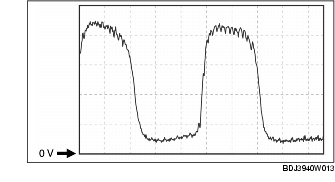

Oxygen concentration signal

PCM terminals
• 2AI (+)-Negative battery terminal (-)
Oscilloscope setting
• 0.2 V/DIV (Y), 1 s/DIV (X), DC range
Vehicle condition
• Idle after warm-up

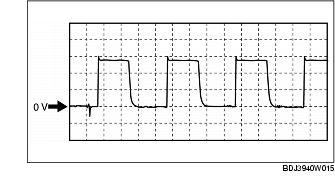

Variable valve timing control (+) signal

PCM terminals
• 2AK (+)-Negative battery terminal (-)
Oscilloscope setting
• 5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
• Idle after warm-up

HO2S heater signal

PCM terminals
• 2AM (+)-Negative battery terminal (-)
Oscilloscope setting
• 2 V/DIV (Y), 0.1 s/DIV (X), DC range
Vehicle condition
• Idle after warm-up

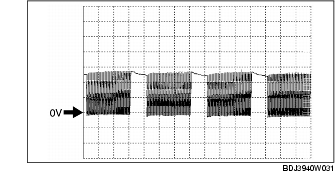

Generator control signal

PCM terminals
• 2AN (+)-Negative battery terminal (-)
Oscilloscope setting
• 0.5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
• Idle after warm-up

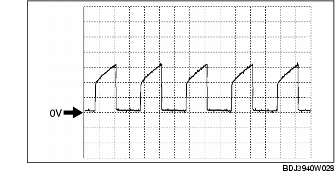

Generator output voltage signal

PCM terminals
• 2AR (+)-Negative battery terminal (-)
Oscilloscope setting
• 2 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
• Idle after warm-up

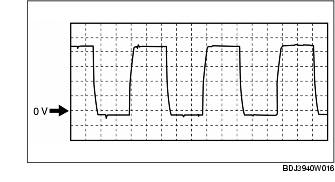

Purge control signal

PCM terminals
• 2AV (+)-Negative battery terminal (-)
Oscilloscope setting
• 2 V/DIV (Y), 0.1 s/DIV (X), DC range
Vehicle condition
• Idle after warm-up

CMP signal

PCM terminals
• 2BB (+)-Negative battery terminal (-)
Oscilloscope setting
• 1 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
• Idle after warm-up

Using the WDS or Equivalent

Note
• PIDs for the following parts are not available on this model. Go to the appropriate part inspection page.
- CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [ZJ, Z6].)
- Main relay (See RELAY INSPECTION.)

1. Connect the WDS or equivalent to the DLC-2.

2. Turn the ignition switch to the ON position.

3. Measure the PID value.

• If PID value is not within the specification, follow the instructions in Action column.
Note
• The PID/DATA MONITOR function monitors the calculated value of the input/output signals in the PCM. Therefore, an output device malfunction is not directly indicated as a malfunction of the monitored value for the output device. If a monitored value of an output device is out of specification, inspect the monitored value of the input device related to the output control.
• The simulation items that are used in the ENGINE CONTROL SYSTEM OPERATION INSPECTION are as follows.
- ACCS, ALTF, ARPMDES, EVAPCP, FAN_DUTY, FP, FUELPW1, GENVDSD, HTR11, HTR12, IAC, IMRC, IMTV, INJ_1, INJ_2, INJ_3, INJ_4, SEGRP, test, VT ACT1, VT DUTY1

Item (definition)

Unit/Condition

Condition/Specification (Reference)

Inspection item(s)

PCM terminal
AC_REQ
(Refrigerant pressure switch (low pressure switch, high pressure switch))
On/Off
• Refrigerant pressure is more than the specification or less than the specification. (Refrigerant pressure switch (low pressure switch, high pressure switch) is off.): Off
• Others: On
• Refrigerant pressure switch (low pressure switch, high pressure switch)
1Q
ACCS
(A/C relay)
On/Off
• A/C is operating: On
• A/C is not operating: Off
• The following PIDs
- CPP, CPP/PNP, PSP, ECT, PCM_T, RPM, TP, TR, AC_REQ, COLP
1AL
ALTF
(Generator field coil control duty value)
%
• Ignition switch is turned to the ON position: 0%
• Idling, E/L is operating: Duty value increases.
• The following PIDs
- ECT, IAT, RPM, VSS, ALTT V, VPWR
• Generator
2AN
ALTT V
(Generator output voltage)
V
• Ignition switch is turned to the ON position: Approx. 1.0 V or less
• Idling (no electrical load): Approx. 14 V (This is an internal calculation value and differs from the terminal voltage.)
• Generator
2AR
ARPMDES
(Target engine speed)
RPM
• Indicate the target engine speed
• The following PIDs
- CPP, CPP/PNP, PSP, ECT, IAT, RPM, TP, MAF, BARO, VSS, AC_REQ, COLP
•  IAC valve
-
BARO
(Barometric pressure)
kPa
Bar
psi
• Ignition switch is turned to the ON position: Indicate the atmospheric pressure
• BARO sensor
2S
V
• Ignition switch is turned to the ON position
- Altitude: 0 m {0 ft}: 2.3-2.8*1
- Altitude:500 m {1,640 ft}: 2.2-2.8*1
- Altitude:1,000 m {3,281 ft}: 2.1-2.8*1
- Altitude:1,500 m {4921 ft}: 2.0-2.8*1
- Altitude: 2,000 m {6,562 ft}: 1.9-2.7*1
- Altitude: 2,500 m {8,202 ft}: 1.8-2.6*1
BOO
(Brake switch)
On/Off
• Brake pedal is depressed: On
• Brake pedal is released: Off
• Brake switch
1V
CATT11_DSD
(Estimated catalytic converter temperature)
°C
°F
• Indicate the estimated catalytic converter temperature
• The following PIDs
- BARO, ECT, IAT, MAF, RPM
-
CHRGLP
(Generator warning light)
On/Off
• Ignition switch is turned to the ON position: On
• Idling: Off
• Generator warning light
-
COLP
(Refrigerant pressure switch (medium pressure switch))
On/Off
• Refrigerant pressure is 1.52 MPa {15.5 kgf/cm2, 221 psi} or more: On
• Refrigerant pressure is 12.3 MPa {125 kgf/cm2, 1783 psi} or less: Off
• Refrigerant pressure switch (medium-pressure switch)
1U
CPP*2
(Clutch pedal position)
On/Off
• Clutch pedal is depressed: On
• Clutch pedal is released: Off
• CPP switch
1P
CPP/PNP*2
(Shift lever position)
Drive/Neutral
• Neutral: Neutral
• Other than neutral: Drive
• Neutral switch
1AB
DTCCNT
(Number of DTC detected)
No unit
• Number of DTCs stored
-
-
DWN SW*3
ECT
(Engine coolant temperature)
°C
°F
• Ignition switch is turned to the ON position: Indicate the ECT
• ECT sensor
2J
V
• ECT is 20 °C {68 °F}: Approx. 3.0 V
• ECT is 60 °C {140 °F}: Approx. 1.4 V
• ECT is 80 °C {176 °F}: Approx. 0.9 V
EQ_RAT_DSD
(Theoretical air/fuel ratio coefficient to calculate target air/fuel ratio)
No unit
• Idling after warm-up: Approx.1
• Front HO2S
-
EVAPCP
(Purge solenoid valve duty value)
%
• Ignition switch is turned to the ON position: 0 %
• Increase the engine speed: Duty value rises
• The following PIDs
- ECT, IAT, RPM, TP, MAF, O2S11, BOO, VPWR
2AV
FAN_DUTY
(Fan control duty value)
%
• When all of following condition are met: 90 %
- Test mode On
- WOP
• The following PIDs
- test, TP
-
FP
(Fuel pump relay)
On/Off
• Immediately after ignition switch is turned to the ON position: On
• Ignition switch is turned to the ON position: Off
• Idling: On
• Cranking: On
• Fuel pump relay
1AC
FUELPW
(Fuel injector duration)
ms
• Idling: Approx. 2.0 ms
• The following PIDs
- CPP, CPP/PNP, PSP, ECT, IAT, RPM, TP, MAF, O2S11, O2S12, BARO, VSS, TR, BOO, AC_REQ, COLP, VPWR
2B, 2C, 2D, 2H
FUELSYS
(Fuel system status)
OL/CL/
OL Drive/
OL Fault/
CL Fault
• Idling after warm-up: CL
• The following PIDs
- CPP, CPP/PNP, PSP, ECT, IAT, RPM, TP, MAF, O2S11, O2S12, BARO, VSS, TR, BOO, AC_REQ, COLP, VPWR
-
GEAR*3
GENVDSD
(Target generator voltage)
V
• Indicate the target generator voltag
• The following PIDs
- ECT, IAT, RPM, VSS, ALTT V, VPWR
• Generator
-
HTR11
(Front HO2S heater control)
On/Off
• Ignition switch is turned to the ON position: Off
• When the vehicle is driving at engine speed less than 4,300 rpm: On
• The following PIDs
- ECT, IAT, RPM, TP, MAF, BARO, VPWR
2AM
HTR12
(Rear HO2S heater control)
On/Off
• After fixed period of time from engine start: On
• Engine speed is 2,700 or more: Off
• The following PIDs
- ECT, IAT, RPM, TP, MAF, BARO, VPWR
2AT
IAC
(IAC duty value)
%
• Ignition switch is turned to the ON position: 0 %
• Idling (ECT is 88 °C {190 °F}, no load condition): Approx. 25 %
• The following PIDs
- CPP, CPP/PNP, PSP, ECT, IAT, RPM, TP, MAF, BARO, VSS, AC_REQ, COLP
2X, 2AB
IAT
(Intake air temperature)
°C
°F
• Ignition switch is turned to the ON position: Indicate the IAT
• IAT sensor
2AQ
V
• IAT is 20°C {68°F}: Approx. 2.2 V
• IAT is 30°C {86°F}: Approx. 1.8 V
IMRC
(Variable tumble control)
%
• Cold start and 3,250 rpm or less: 12.5-50
• Hot start or 3,250 rpm or more: 12.5-42
• The following PIDs
- ECT, RPM, TP
2AF, 2AJ
On/Off
• Cold start and 3,250 rpm or less: On
• Hot start or 3,250 rpm or more: Off
IMTV*6
(Variable intake-air control)
%
• Engine speed is less than 4,100 rpm: 12.5-50
• Engine speed is 4,100 rpm or more: 12.5-42
• The following PIDs
- RPM
2AO, 2AS
On/Off
• Engine speed is less than 4,100 rpm: On
• Engine speed is 4,100 rpm or more: Off
INGEAR
(Gears are engaged.)
On/Off
MTX
• When the following conditions are satisfied: On
- Not neutral
- Clutch pedal released
• Except above: Off
• CPP switch
• Neutral switch
1P, 1AB
ATX
• Driving range: On
• Except above: Off
• TR switch
-
IVS
(CTP condition)
Idle/Off Idle
• Idling: Idle
• Other than idling: Off Idle
• The following PIDs
- TP
-
KNOCKR
(Knocking retard)
°
• Ignition switch is turned to the ON position: 0 °
• Idling: 0 °
• KS
2BA
LINEDES*3
LOAD
(Engine load)
%
• Idling (after warm-up): Approx. 23 %
• The following PIDs
- BARO, IAT, MAF, RPM
-
LONGFT1
(Long term fuel trim)
%
• Idling (after warm-up): Approx. -15-+15 %
• The following PIDs
- CPP, CPP/PNP, PSP, ECT, IAT, RPM, TP, MAF, O2S11, O2S12, BARO, VSS, TR, BOO, AC_REQ, COLP, VPWR
-
LPS*3
MAF
(Mass air flow)
g/s
• Ignition switch is turned to the ON position: Approx. 0 g/s
• Idling: Approx. 2.7 g/s
• MAF sensor
2AU
V
• Ignition switch is turned to the ON position: Approx. 0.7 V
• Idling: Approx. 1.3 V
MIL
(Malfunction indicator lamp)
On/Off
• Ignition switch is turned to the ON position: On
• Idling: Off
(If there is a malfunction in emission control related system: On)
• MIL
-
MIL_DIS
(Travelled distance since MIL illuminated)
km
mile
Indicate the travelled distance since the MIL illuminated
MNL SW*3
O2S11
(Front HO2S)
V
• Ignition switch is turned to the ON position: 1.0 V or less
• Idling (after warm-up): Alternates between 0 and 1.0 V

• Front HO2S

2AI
O2S12
(Rear HO2S)
V
• Idling (after warm-up): Alternates between 0 and 1.0 V

• Rear HO2S

2K
OP_SW_B*3
PCM_T
(PCM temperature sensor)
V
• Ignition switch is turned to the ON position: Indicate the PCM temperature sensor output voltage
• PCM
-
PCM_T_Max
(Maximum PCM temperature)
V
• Ignition switch is turned to the ON position: Indicate the maximum PCM temperature sensor output voltage
• PCM
-
PSP
(PSP switch)
High/Low
• Steering wheel is in straight ahead position: Low
• Steering wheel is fully turned: High
• PSP switch
2AC
RFCFLAG
(PCM adaptive memory produce verification)
Learnt/Not Learnt
• Idling (after running PCM adaptive memory procedure drive mode): Learnt
• Right after the negative battery cable is disconnected (before running PCM adaptive memory procedure drive mode): Not Learnt
• Perform "DRIVE MODE".
-
RO2FT1
(Rear oxygen sensor fuel trim)
No unit
• Idling after warm-up: Approx. -0.03-+0.03
• The following PID
- O2S12
2K
RPM
(Engine speed)
RPM
• Indicate the engine speed
• CKP sensor
2P
SEGRP
(EGR control)
Step
• Ignition switch is turned to the ON position: 0 step
• Idling: 0 step
• Vehicle driving when engine speed is 1,000-4,700 rpm: 0-52 step
• EGR valve
2N, 2R, 2V, 2Z
SEGRP DSD
(EGR valve position desired)
%
• Ignition switch is turned to the ON position: 0 %
• Idling: 0 %
• Vehicle driving when engine speed is 1,000-4,700 rpm: 0-100 %
• The following PID
- MAF, TP, ECT, RPM, VSS
-
SHRTFT1
(Short term fuel trim (front))
%
• Idling (after warm-up): -25-+25%
• The following PIDs
- CPP, CPP/PNP, PSP, ECT, IAT, RPM, TP, MAF, O2S11, O2S12, BARO, VSS, TR, BOO, AC_REQ, COLP, VPWR
-
SHRTFT11
(Short term fuel trim (front))
%
• Idling (after warm-up): -25-+25%
• The following PIDs
- CPP, CPP/PNP, PSP, ECT, IAT, RPM, TP, MAF, O2S11, O2S12, BARO, VSS, TR, BOO, AC_REQ, COLP, VPWR
2AI
SHRTFT12
(Short term fuel trim (rear))
%
• Idling after warm-up: Approx. 99 %
• The following PIDs
- CPP, CPP/PNP, PSP, ECT, IAT, RPM, TP, MAF, O2S11, O2S12, BARO, VSS, TR, BOO, AC_REQ, COLP, VPWR
2K
SPARKADV
(Ignition timing)
° (BTDC)
• Indicate the ignition timing
• The following PIDs
- CPP, CPP/PNP, PSP, ECT, IAT, RPM, TP, MAF, KNOCKR, TR, BOO, AC_REQ, COLP
2BB
SSA/SS1*3
SSB/SS2*3
SSC/SS3*3
TCS*3
test
(Test mode)
On/Off
• During test mode: On
• Other than test mode: Off
-
-
TFT*3
TFTV*3
TIRESIZE
(Tire revolution per mile)
No unit
• Indicate the tire revolution per a mile
TP
(TP)
%
• CTP: Approx. 12 %
• WOT: Approx. 75 %
• TP sensor
2AA
V
• CTP: 0.31.0 V
• WOT: 3.14.5 V
TP REL
(Throttle position signal (relative value))
%
• CTP: Approx. 0 %
• WOT: Approx. 100 %
• TP sensor
2AA
TPCT
(TP sensor voltage at CTP)
V
0.31.0 V
• TP sensor
2AA
TR*3
TR_SENS*3
TSS*3
UP SW*3
VPWR
(Battery positive voltage)
V
• Ignition switch is turned to the ON position.: B+
• Idling: B+
• Battery
• Main relay
1AX, 1BB, 1BF
1BG*3
Vref
(Constant voltage)
V
• Ignition switch is turned to the ON position.: Approx. 5 V
• Battery
2W
VSS
(Vehicle speed)
KPH
MPH
• Vehicle running: Indicate the vehicle speed
• VSS

*2-

*31AY

VT ACT1
(Actual valve timing)
°
• Idling: 0 °
• Racing: 025 °
• The following PIDs
- ECT, RPM, TP, MAF
• OCV
2AG, 2AK
VT DIFF1
(Difference between target valve timing and actual valve timing)
°
• Idling: 0 °
• The following PIDs
- ECT, RPM, TP, MAF
• OCV
-
VT DUTY1
(OCV control)
%
• Idling: Approx. 10 %
• The following PIDs
- ECT, RPM, TP, MAF
2AG, 2AK

*1 :
The voltage may vary excessively depending on the weather or battery conditions.
*2 :
MTX
*3 :
ATX
*4 :
Alternator generating current value
*5 :
A/C compressor pressure switch
*6 :
Z6
