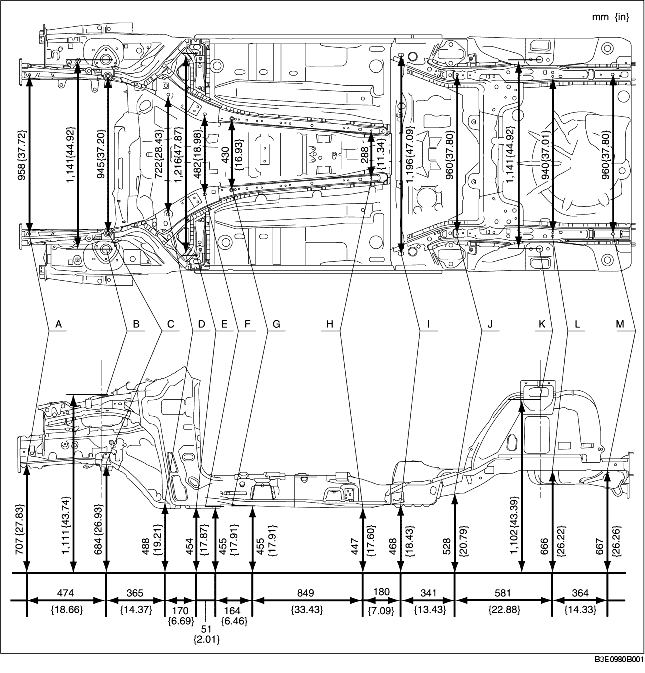

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|---|
|
A
|
Front side frame standard hole
|
ø16 {0.63}
|
|
B
|
Front suspension mounting block
|
ø46 {1.81}
|
|
C
|
Front suspension mounting bracket
|
ø19 {0.75}
|
|
D
|
Front frame rear standard hole
|
ø20 {0.79}
|
|
E
|
Torque box standard hole
|
ø16 {0.63}
|
|
F
|
Front frame rear standard hole
|
16 x 6
|
|
{0.63 x 0.24}
|
|
G
|
Front B frame standard hole
|
ø16 {0.63}
|
|
H
|
Front B frame standard hole
|
ø7 {0.28}
|
|
I
|
Crossmember No.3 reinforcement
|
36 x 22
|
|
{1.41 x 0.87}
|
|
J
|
Rear side frame standard hole
|
ø16 {0.63}
|
|
K
|
Rear suspension mounting block
|
ø40 {1.57}
|
|
L
|
Rear side frame standard hole
|
ø14 {0.55}
|
|
M
|
Rear side frame standard hole
|
16 x20
|
|
{0.63 x 0.79}
|
