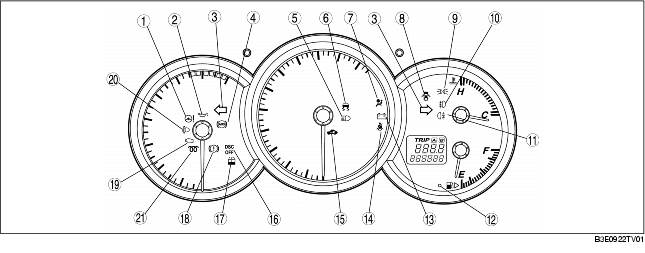

No.
|
Warning and indicator light
|
Input signal source
|
CAN system
|
Note
|
|---|
|
1
|
EHPAS warning light
|
EHPAS control module
|
×
|
-
|
|
2
|
Oil pressure warning light
|
PCM
|
×
|
-
|
|
3
|
Turn indicator light
|
PJB
|
×
|
-
|
|
4
|
ABS warning light
|
• DSC HU/CM
• ABS HU/CM
|
×
|
-
|
|
5
|
High-beam indicator light
|
PJB
|
×
|
-
|
|
6
|
DSC indicator light
|
DSC HU/CM
|
×
|
-
|
|
7
|
Air bag system warning light
|
SAS unit
|
×
|
-
|
|
8
|
Door ajar warning light
|
PJB
|
×
|
-
|
|
9
|
TNS indicator light
|
TNS relay
|
-
|
-
|
|
10
|
Front fog indicator light
|
Front fog light relay
|
-
|
-
|
|
11
|
Rear fog indicator light
|
Rear fog light relay
|
-
|
-
|
|
12
|
Fuel-level warning light
|
Fuel gauge sender unit
|
-
|
-
|
|
13
|
Generator warning light
|
PCM
|
×
|
-
|
|
14
|
Seat belt warning light
|
SAS unit
|
×
|
-
|
|
15
|
Security light
|
• PCM
• PJB
|
×
|
-
|
|
Coil
|
-
|
-
|
|
16
|
DSC OFF light
|
DSC HU/CM
|
×
|
-
|
|
17
|
Washer fluid level warning light
|
Washer fluid level sensor
|
-
|
-
|
|
18
|
Brake system warning light
|
• DSC HU/CM
• ABS HU/CM
• PJB
|
×
|
-
|
|
19
|
MIL
|
PCM
|
×
|
-
|
|
20
|
Headlight auto leveling warning light
|
Auto leveling control module
|
-
|
With discharge headlight
|
|
21
|
Glow indicator light
|
PCM
|
×
|
-
|
