REAR ANTENNA FEEDER INSPECTION

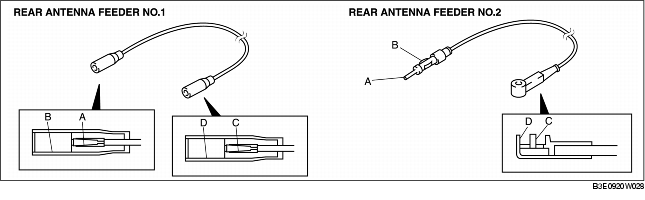

1. Verify that there is no continuity between the front antenna feeder terminal A and B.

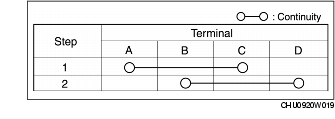

2. Verify that the continuity is as indicated in the table.

• If not as indicated in the table, replace the rear antenna feeder No.1 or No.2.
