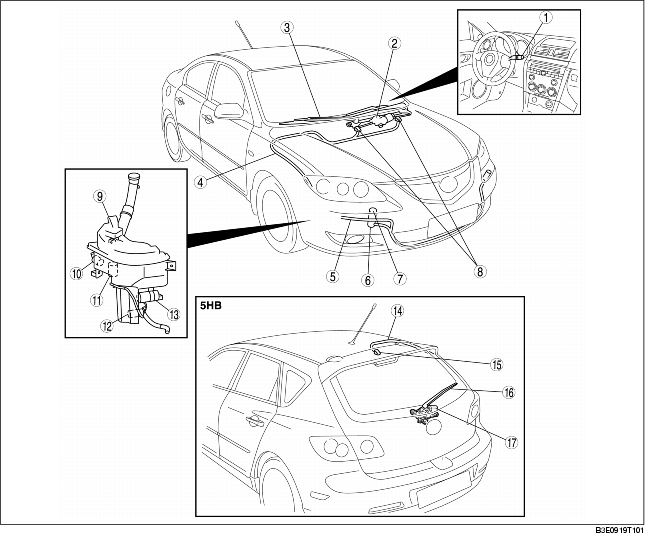

WIPER/WASHER SYSTEM STRUCTURAL VIEW
B3E091901052T02
1
Wiper and washer switch
2
Windshield wiper motor
3
Windshield wiper arm and blade
4
Windshield washer hose
5
Headlight cleaner hose
6
Headlight cleaner actuator
7
Headlight cleaner nozzle
8
Windshield washer nozzle
9
Washer tank
10
Rear washer motor
11
Washer fluid-level sensor
12
Windshield washer motor
13
Headlight cleaner motor
14
Rear washer hose
15
Rear washer nozzle
16
Rear wiper arm and blade
17
Rear wiper motor
