LIFTGATE UPPER TRIM REMOVAL/INSTALLATION


B3E091768930W02

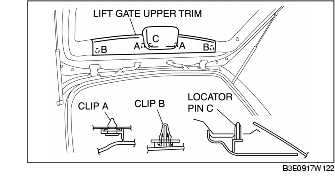

1. Pull the liftgate upper trim outward, then detach the clips A, B and the locator pin C from the liftgate.

2. Remove the liftgate upper trim.

3. Install in the reverse order of removal.
