COWL GRILLE REMOVAL/INSTALLATION
B3E091650780W01

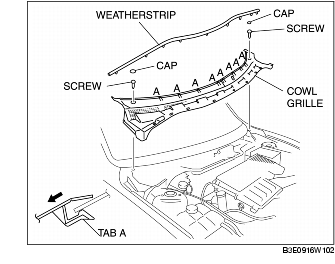

1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
2. Using a small flathead screwdriver, remove the caps.
3. Remove the screws.
4. Remove the weatherstrip.
5. Move the cowl grille in the direction indicated by the arrow and disengage tabs A from the windshield.
6. Remove the cowl grille.
7. Install in the reverse order of removal.
