POWER DOOR LOCK SYSTEM CONSTRUCTION/OPERATION

B3E091401090T03

• Consists of the following parts;

- PJB

- Front door latch and lock actuator

- Rear door latch and lock actuator

- Liftgate latch and lock actuator (5HB)

- Door lock-link switch (built into the driver-side front door lock actuator)

- Door key cylinder switch (built into the driver-side front door lock actuator)

- Trunk lid key cylinder switch (built into the trunk lid key cylinder) (4SD)

• Unlocking/locking of all doors and liftgate is performed by operation of the door key cylinder (door key cylinder switch) and driver-side door knob (door lock-link switch).

• Unlocking/locking of all doors is performed by operation of the trunk lid key cylinder (trunk lid key cylinder switch). (4SD)


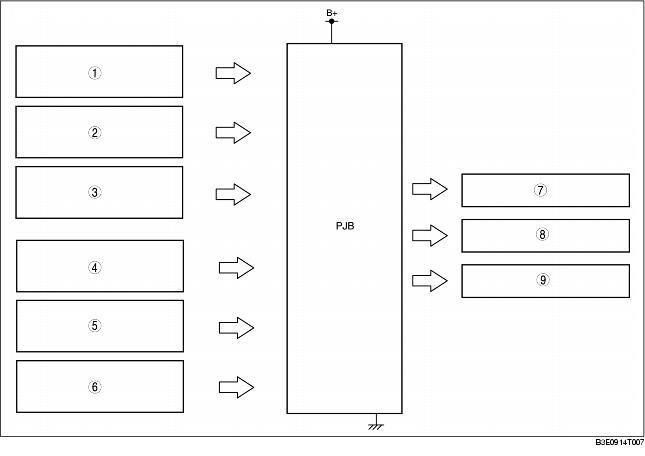

1	Door latch switch (door open or closed)
2	Trunk lid latch switch (trunk lid open or closed)
3	Liftgate latch switch (liftgate open or closed)
4	Door key cylinder switch (lock or unlock)
5	Door lock-link switch (lock or unlock)
6	Trunk lid key cylinder switch (lock or unlock)
7	Front door lock actuator
8	Rear door lock actuator
9	Liftgate lock actuator

• When the locking operation using the driver-side front door key cylinder is performed twice within 3 s, unlocking the door with the door lock knob is inhibited. (Double-locking function)

• When any door is open, locking operation using the door key cylinder or the driver-side door lock knob is cancelled and the doors are unlocked. (Lock cancel function)
