CLOCK SPRING ADJUSTMENT

Note

• The adjustment procedure is also specified on the caution label of the clock spring.

1. Set the front tires straight-ahead.

Caution

• The clock spring will break if over-wound. Do not forcibly turn the clock spring.

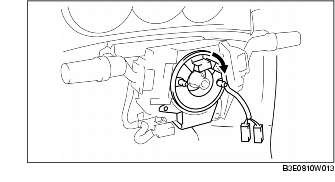

2. Turn the clock spring clockwise until it stops.

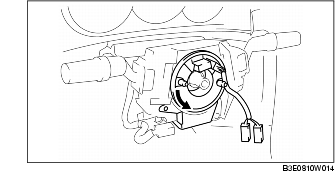

3. From the stopped position, turn the clock spring counterclockwise 2 3/4 turns.

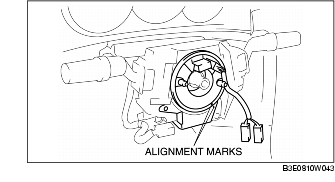

4. Align the marks.
