CLIMATE CONTROL UNIT INSTALLATION [MANUAL AIR CONDITIONER]

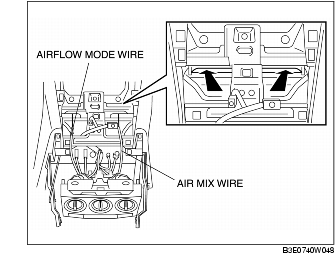

1. Pass each wire through the following routes and connect to A/C unit.

2. Connect the climate control unit connectors.

3. Adjust the climate control unit wires. (See CLIMATE CONTROL UNIT WIRE ADJUSTMENT.)

4. Install the following parts:

(1) PJB and PJB bracket. (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION.)

(2) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(3) Decoration panel (SeeDECORATION PANEL REMOVAL/INSTALLATION.)

(4) Front side trim (RH) (SeeFRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5) Front scuff plate (RH) (SeeFRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(6) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7) Front side trim (SeeFRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8) Front scuff plate (SeeFRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(9) Detach the bonnet release lever from the lower panel. (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION [L.H.D.].) (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION [R.H.D.].)

(10) Ashtray panel (See CONSOLE REMOVAL/INSTALLATION.)

(11) Climate control unit

(12) Center panel module (See CENTER PANEL MODULE REMOVAL/INSTALLATION.)

5. Connect the negative battery cable.
