MAGNETIC CLUTCH INSPECTION [LF]
B3E074061010W05

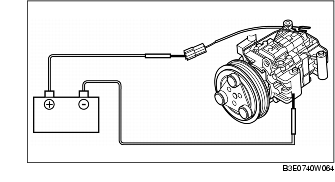

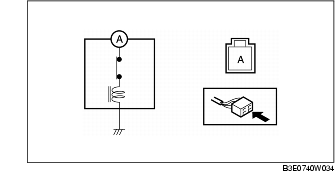

1. Connect battery positive voltage to magnetic clutch terminal A and the A/C compressor body to ground.
2. Verify that the magnetic clutch operates.
-
• If there is any malfunction, replace the stator and thermal protector.
