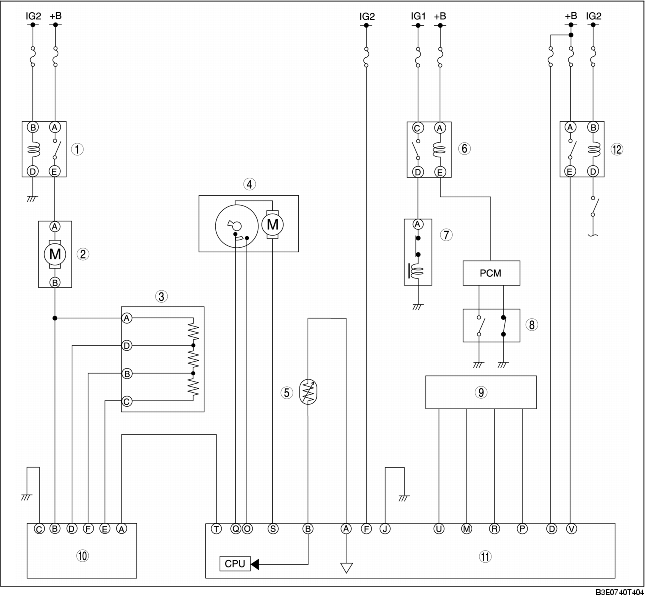

CONTROL SYSTEM WIRING DIAGRAM [MANUAL AIR CONDITIONER]
B3E074001040T05
1
Blower relay
2
Blower motor
3
Resistor
4
Air intake actuator
5
Evaporator temperature sensor
6
A/C relay
7
Magnetic clutch
8
Refrigerant pressure switch
9
PJB
10
Fan switch
11
Climate control unit
12
TNS relay
