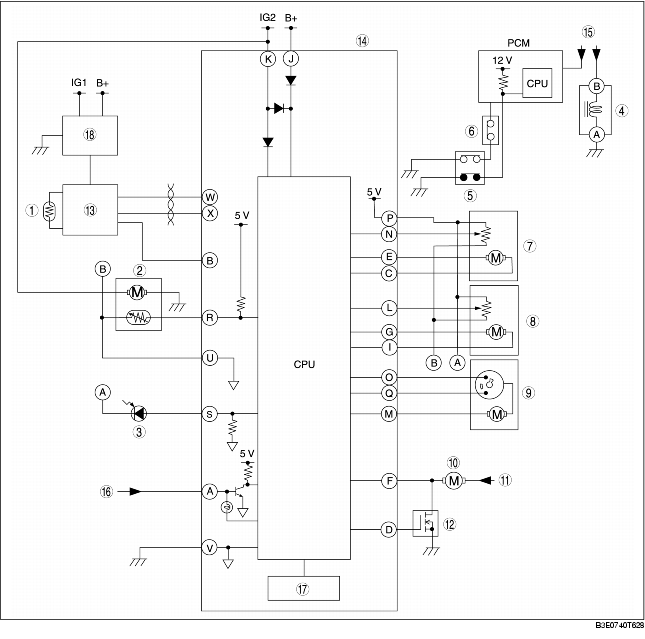

CONTROL SYSTEM WIRING DIAGRAM [FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))]

B3E074000000T04


1	Ambient temperature sensor
2	Cabin temperature sensor
3	Solar radiation sensor
4	Magnetic clutch
5	Refrigerant pressure switch
6	A/C compressor cycling switch
7	Air mix actuator
8	Airflow mode actuator
9	Air intake actuator
10	Blower motor
11	Blower relay
12	Power MOS FET
13	PJB
14	Climate control unit
15	A/C relay
16	TNS relay
17	Each switch
18	PTC heater
