BASIC SYSTEM STRUCTURAL VIEW
B3E071101040T02

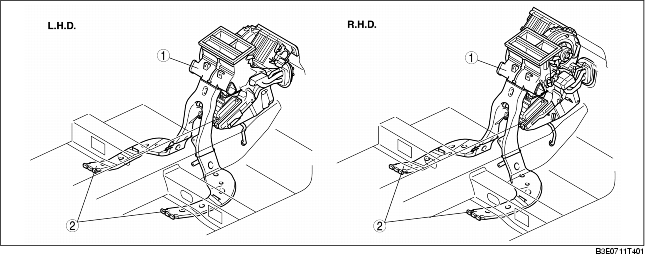

Ventilation System
1
A/C unit
2
Rear heat duct

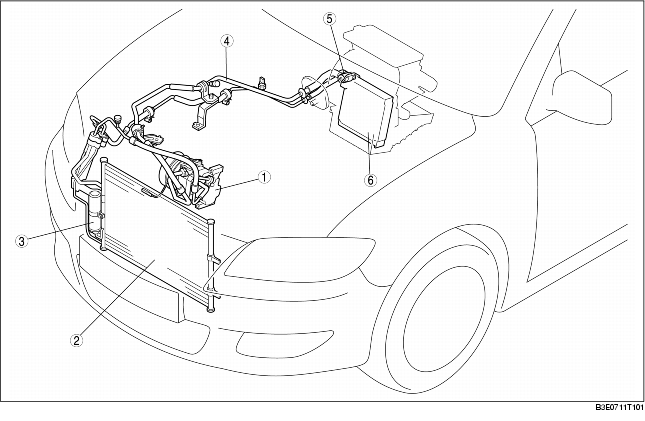

Refrigerant System
1
A/C compressor
2
Condenser
3
Receiver/drier
4
Refrigerant line
5
Expansion valve
6
Evaporator
