CONTROL ROD [F35M-R]
B3E051501025T03
Construction/Operation

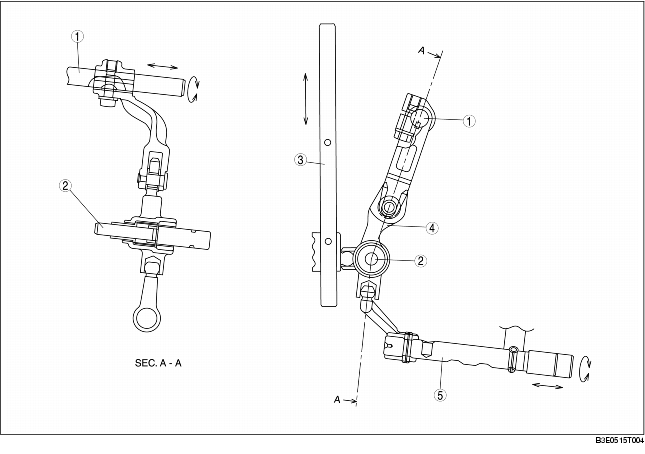

• Movement of the shift lever when operated is transmitted as follows, resulting in gear shifting: cable→shift lever shaft→crank lever →control rod.
|
1
|
Shift lever shaft
|
|
2
|
Crank lever shaft
|
|
3
|
Control rod
|
|
4
|
Crank lever
|
|
5
|
Control rod
|
