CLUTCH DISC INSPECTION [J65M-R]

1. Remove the clutch disc.

2. Inspect the lining surface for discoloration and grease adhesion.

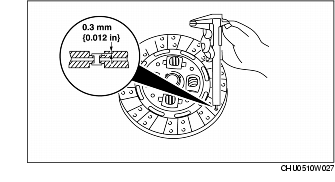

3. Inspect the torsion spring for weakness and the rivet for looseness.

4. Using a vernier caliper, measure the depth between the lining surface and the rivet head.

0.3 mm {0.012 in}

• If it is less than the minimum specification, replace the clutch disc.

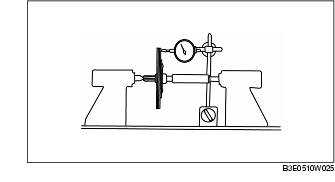

5. Measure the clutch disc runout using a dial gauge.

0.5 mm {0.020 in}

• If it exceeds the maximum specification, replace the clutch disc.

6. Install the clutch disc.
