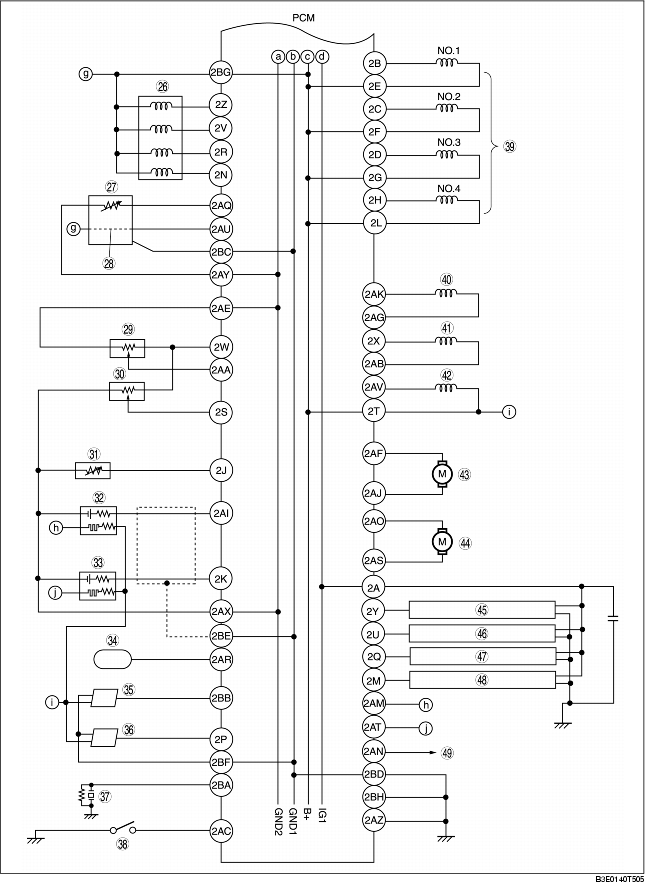

ENGINE CONTROL SYSTEM WIRING DIAGRAM [ZJ, Z6]


B3E014000140T04

1
Brake switch
2
Refrigerant pressure switch (low pressure, high pressure)
3
Refrigerant pressure switch (medium pressure)
4
VSS
5
Input/turbine speed sensor
6
TFT sensor
7
TR switch
8
Clutch switch
9
Neutral switch
10
Down switch
11
Up switch
12
M range switch
13
Pressure control solenoid
14
Shift solenoid
15
A/C relay
16
Main relay
17
Fuel pump relay
18
Instrument cluster
19
ABS HU/CM
20
DSC HU/CM
21
DLC-2
22
Fan control module
23
Starter relay
24
Ignition switch
25
Battery
26
EGR valve
27
IAT sensor
28
MAF sensor
29
TP sensor
30
BARO sensor
31
ECT sensor
32
Front HO2S
33
Rear HO2S
34
Generator (terminal P: stator coil)
35
CMP sensor
36
CKP sensor
37
KS
38
PSP switch
39
Fuel injector
40
OCV
41
IAC valve
42
Purge solenoid valve
43
Variable tumble shutter valve actuator
44
Variable intake-air shutter valve actuator (Z6)
45
Ignition coil No.1
46
Ignition coil No.2
47
Ignition coil No.3
48
Ignition coil No.4
49
To generator (terminal D: field coil)
