GENERATOR CONSTRUCTION [LF]


B3E011701008T07
• With the elimination of the voltage regulator, generator control is carried out by the PCM. (See GENERATOR CONTROL OPERATION [LF].) Exciting current in the field coil is increased or decreased by the duty signal from the PCM sent to the power transistor built into the generator.

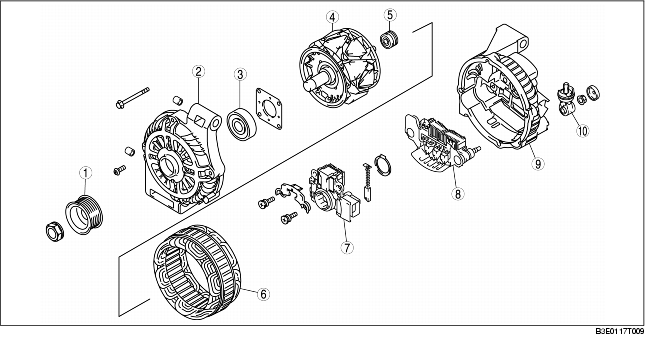

1
Pulley
2
Front cover
3
Front bearing
4
Rotor
5
Rear bearing
6
Stator
7
Regulator component (built-in power transistor)
8
Rectifier
9
Rear cover
10
Terminal B component

1
Stator coil
2
Power transistor
3
Instrument cluster (warning light)
4
Battery

• The generator warning light in the instrument cluster illuminates under the following conditions. (See DTC DETECTION LOGIC AND CONDITIONS [LF].)
- Charging system voltage problem
- Charging system voltage low
- Charging system voltage high
- IAT sensor circuit low input
- IAT sensor circuit high input
