VARIABLE INTAKE-AIR SYSTEM STRUCTURE [LF]
B3E011300113T16

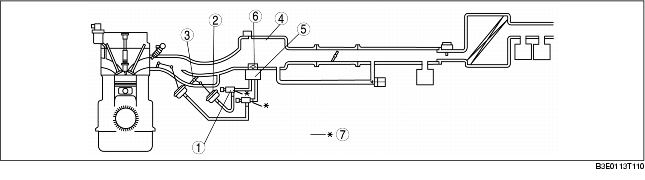

• Mainly consists of the variable intake-air solenoid valve, variable intake-air shutter valve, variable intake-air shutter valve actuator, dynamic chamber and vacuum chamber.
|
1
|
Variable intake-air solenoid valve
|
|
2
|
Variable intake-air shutter valve actuator
|
|
3
|
Variable intake-air shutter valve
|
|
4
|
Dynamic chamber
|
|
5
|
Vacuum chamber
|
|
6
|
Check valve
|
|
7
|
To PCM
|
