WATER PUMP CONSTRUCTION/OPERATION [MZ-CD 1.6 (Y6)]
B3E011215010T01
Construction
• The water pump is mounted on the cylinder block at the timing gear end of the engine and has a plastic housing.
Operation
• The water pump is driven by the timing belt.
|

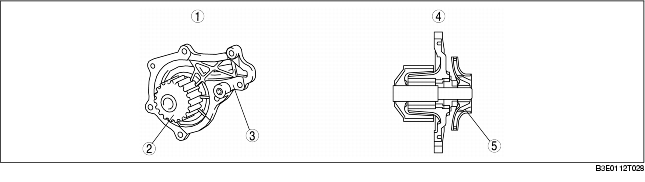

1
|
External view
|
|
2
|
Water pump pulley
|
|
3
|
Water pump body
|
|
4
|
Sectional view
|
|
5
|
Impeller
|
