DRIVE BELT CONSTRUCTION [MZ-CD 1.6 (Y6)]
B3E011015800T03

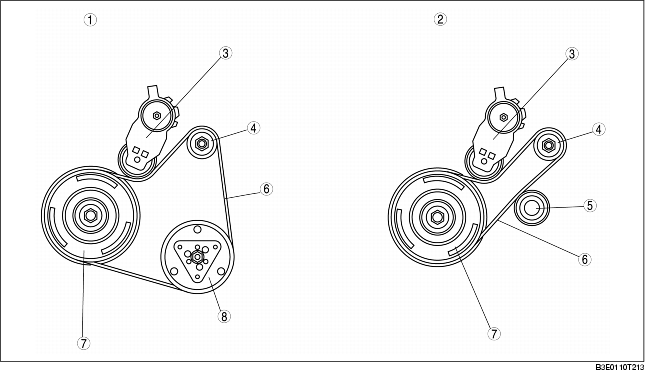

• A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain optimal drive belt tension.
|
1
|
With A/C
|
|
2
|
Without A/C
|
|
3
|
Drive belt auto tensioner
|
|
4
|
Generator pulley
|
|
5
|
Idler pulley
|
|
6
|
Drive belt
|
|
7
|
Crankshaft pulley
|
|
8
|
A/C compressor pulley
|
