DRIVE BELT CONSTRUCTION [ZJ, Z6]
B3E011015800T01
• A serpentine-type drive belt with a V-ribbed belt to drive the supplemental units has been adopted. This shortens the engine length and improves serviceability.
• A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain optimal drive belt tension.
|

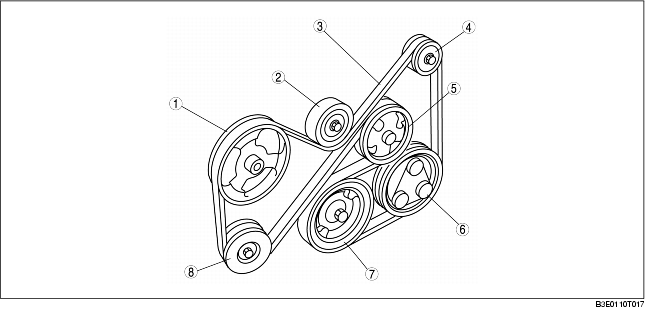

1
|
P/S oil pump pulley
|
|
2
|
Idler pulley
|
|
3
|
Drive belt
|
|
4
|
Generator pulley
|
|
5
|
Water pump pulley
|
|
6
|
A/C compressor pulley
|
|
7
|
Crankshaft pulley
|
|
8
|
Auto tensioner pulley
|
