DTC P0045 [MZ-CD 1.6 (Y6)]

B3E010200001W07

DTC P0045

Variable boost control (VBC) solenoid valve control circuit open

DETECTION CONDITION

• The VBC solenoid valve open circuit.

POSSIBLE CAUSE

• VBC solenoid valve malfunction
• Connector or terminal malfunction

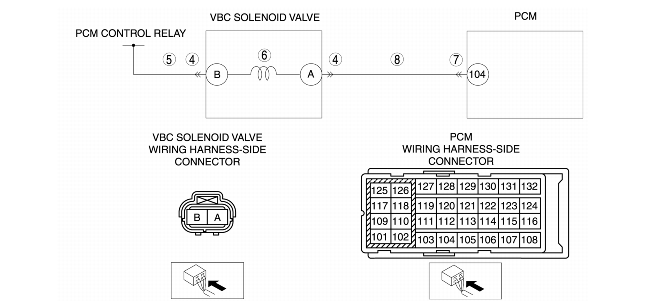

• Open circuit in wiring harness between PCM control relay and VBC solenoid valve terminal B
• Open circuit in wiring harness between VBC solenoid valve terminal A and PCM terminal 104
• PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related service repair information availability.
• Is any related repair information available?
Yes
Perform repair or diagnosis according to the available repair information.
• If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
VERIFY CURRENT SIGNAL STATUS: IS CONCERN INTERMITTENT OR CONSTANT?
• Connect the WDS or equivalent to the DLC-2.
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Run the vehicle under the FREEZE FRAME DATA stored condition.
• Is the same DTC present?
Yes
Go to the next step.
No
Intermittent concern exists.
Perform the "INTERMITTENT CONCERNS TROUBLESHOOTING".
4
INSPECT VBC SOLENOID VALVE CONNECTOR FOR POOR CONNECTION
• Turn the engine switch off.
• Disconnect the VBC solenoid valve connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 9.
No
Go to the next step.
5
INSPECT VBC SOLENOID VALVE POWER CIRCUIT FOR OPEN CIRCUIT
• Turn the engine switch to the ON position (Engine off).
• Measure the voltage between VBC solenoid valve terminal B (wiring harness-side) and body ground.
• Is the voltage B+?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit or short to ground, then go to Step 9.
6
INSPECT VBC SOLENOID VALVE
• Inspect the VBC solenoid valve.
• Is there any malfunction?
Yes
Replace the VBC solenoid valve, then go to Step 9.
No
Go to the next step.
7
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the engine switch off.
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 9.
No
Go to the next step.
8
INSPECT VBC SOLENOID VALVE CONTROL CIRCUIT FOR OPEN CIRCUIT
• Turn the engine switch off.
• Inspect for continuity between VBC solenoid valve terminal A (wiring harness-side) and PCM terminal 104 (wiring harness-side).
• Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
9
VERIFY TROUBLESHOOTING OF DTC P0045 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Run the vehicle under the FREEZE FRAME DATA stored condition.
• Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
No
Go to the next step.
10
VERIFY AFTER REPAIR PROCEDURE
• Perform the after repair procedure.
• Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
DTC troubleshooting completed.
